General - C320, SLK230, SLK320 & SLK350 - 716.622/630/660/662/664/667
>>
Content, Function, Description Of Manual Transmission
>>
Manual Transmission Gear Ratios
Manual Transmission Gear Ratios

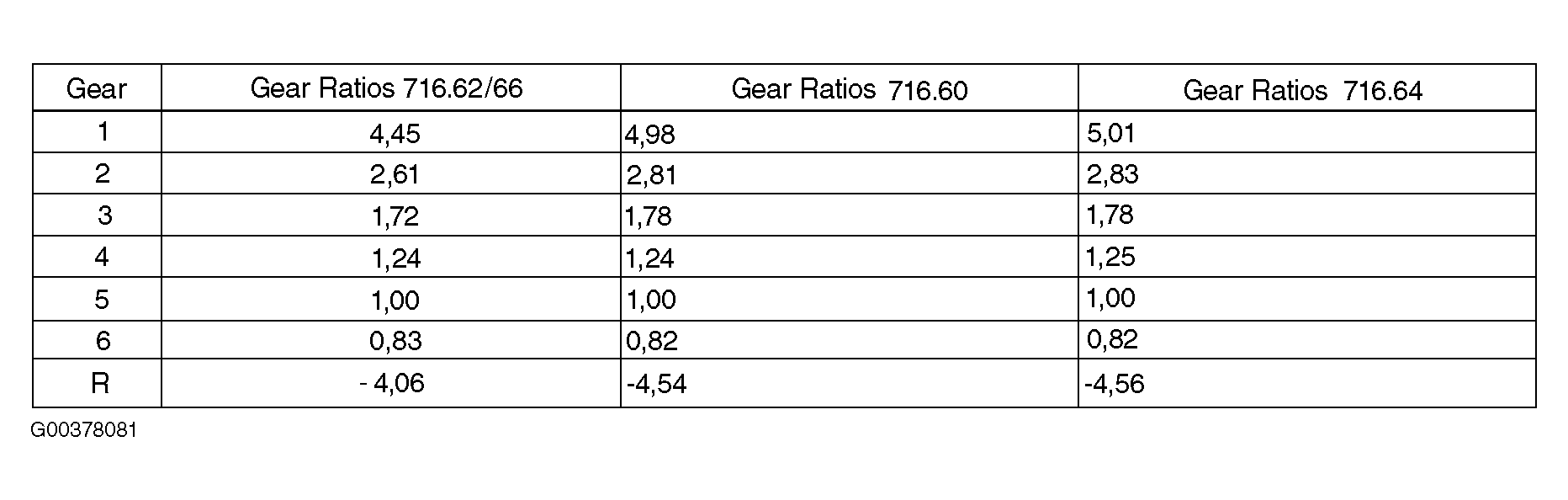

Fig 1: Identifying Manual Transmission (MT) Gear Ratios
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
