Remove/install glove compartment - AR68.10-P-1400V

MODEL 171.4

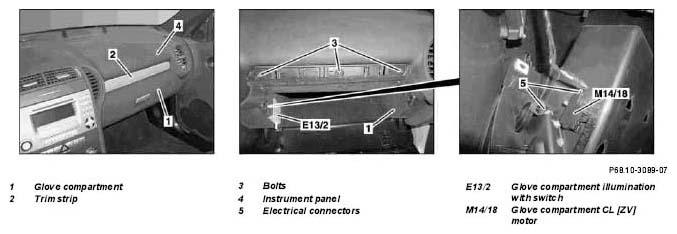

Fig 1: Identifying Glove Compartment Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

18.2.05

Removing and installing cover below instrument panel (right) added

Step 3

	Remove/Install
1.1	Remove CD player with changer (in glove compartment)	For vehicles with code (819) 6-disk CD changer	AR82.64-P-7508V
2	Remove trim strip (2)		AR68.10-P-1180V
3	Remove cover below instrument panel (right).	Place cover with connected interior socket in footwell. For vehicles with code (876) Interior lights package, do not separate the electrical connector on the right front footwell lamp.	AR68.10-P-1520V
4	Unscrew bolts (3)
5	Remove glove compartment (1) from instrument panel (4) until electrical connectors (5) in glove compartment illumination with switch (E13/2) and on glove compartment CL motor (M14/18) are accessible	For vehicles with code (819) 6-disk CD changer: Note the installation position of the electrical wiring harness and the fiber optic cable for CD player with changer (in glove compartment).
6	Disconnect electrical connectors (5) from glove compartment illumination with switch (E13/2) and from glove compartment CL motor (M14/18)
7	Remove glove compartment (1)
8	Install in the reverse order
