Warning indicator, location - GF54.65-P-4104-02R

Fig 1: Identifying Frame, Segments And Front PTS Warning Display
G05075978Courtesy of MERCEDES-BENZ USA

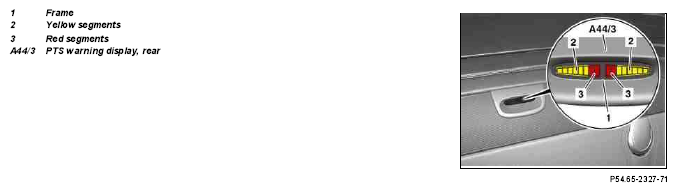

Fig 2: Identifying Frame, Segments And Rear PTS Warning Display
G05075979Courtesy of MERCEDES-BENZ USA
