Fanfare component networking - GF54.35-P-0001-02R

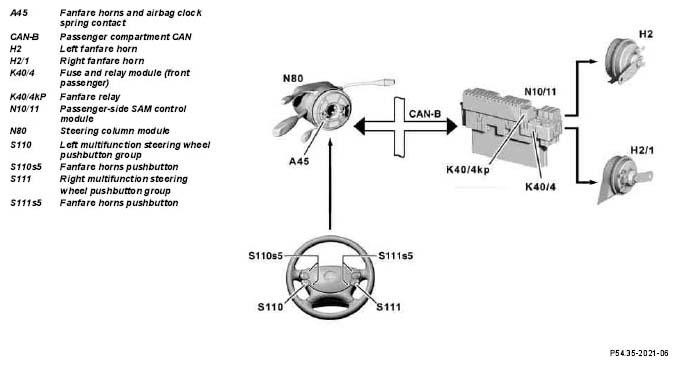

Fig 1: Fanfare Component Networking Diagram

G05075960

Courtesy of MERCEDES-BENZ USA
