Vario roof control and warning messages, function - GF77.30-P-4000R
MODEL 230
The optical warning message is given by the Vario roof indicator lamp (N72e3)
integrated into the Vario roof switch (N72s16)
.

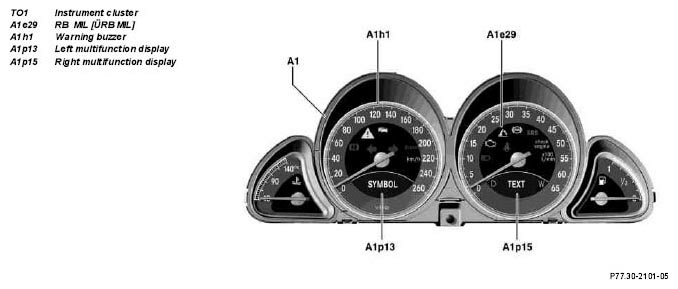

In the event of an erroneous Vario roof sequence and locked end position, the status of the Vario roof is indicated as follows on the instrument cluster:
- "Vario roof open" and symbol "Vario roof opened"
- "Vario roof closed" and symbol "Vario roof closed"
| Error/Malfunction | Symbol in left multifunction display (A1p13) | Text in right multifunction display (A1p15) | Optical/acoustic warning |
| Stop mode active | Vario roof | Vario roof in operation |
|
| Stop mode is switched off in 15 sec | - | Vario roof lowered (white) |
|
| Vario roof operation not possible (error) | Vario roof | Vario roof, visit workshop (white) |
|
| Driving mode V>5 km |
Vario roof | Vario roof disabled because vehicle in motion (white) |
|
| Temperature range exceeded or vehicle electrical system emergency operation | Vario roof | Vario roof in operation, please wait (white) |
|
| Undervoltage | Vario roof | For starting Vario roof operation motor (white) |
|
| Trunk lid not closed | Trunk lid | Close trunk lid (white) |
|
| Trunk partition not closed | Arrow on trunk lid | Close trunk partition (white) |
|
| Vario roof gong, location/purpose/design/ function | GF77.39-P-3012R | ||
| Vario roof switch, location/purpose/design/function | GF77.39-P-3000R | ||
| Control/warning message via multifunction display, function | GF54.30-P-2012R |
