Telephone handset (D-network), location - GF82.70-P-4106-01R

Permanently installed in armrest

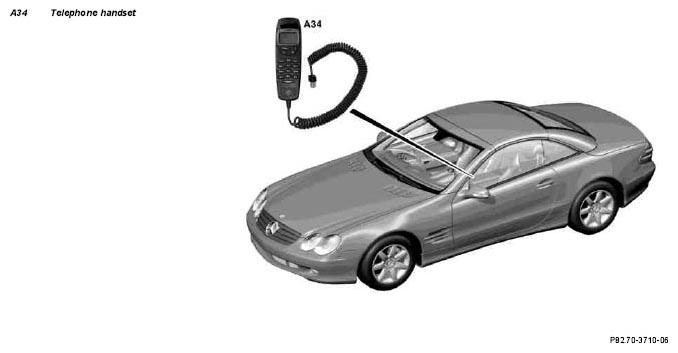

Fig 1: Identifying Telephone Handset (Permanently Installed In Armrest)

G05075675
