Compensator, location - GF82.70-P-3109-01R

IMPORTANT

Left side of trunk behind side paneling (on warning triangle holder).

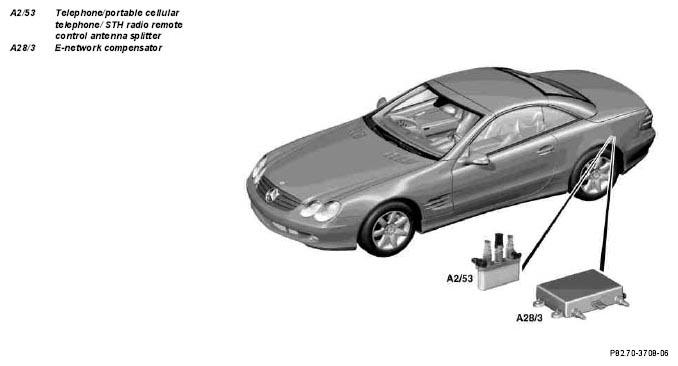

Fig 1: Identifying E-Network Compensator And Remote Control Antenna Splitter
G05075664
