Xenon headlamp ignition unit, location/task - GF82.10-P-2105R
MODEL 230

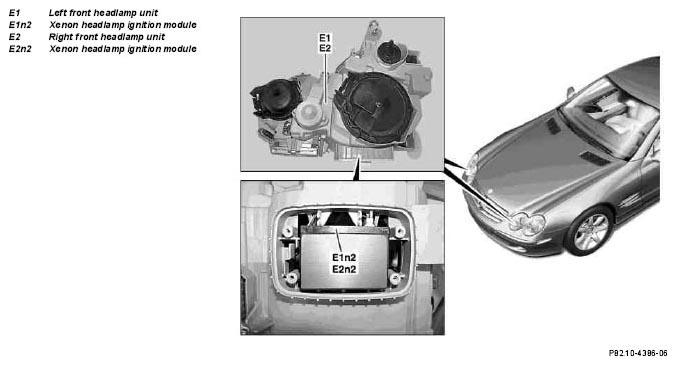

| Xenon headlamp ignition module, location | The xenon headlamp ignition module (E1n2) is located at the bottom of the left front lamp unit (E1) and the xenon headlamp ignition module (E2n2) at the bottom of the right front lamp unit (E2). | ||
| Xenon headlamp ignition unit, purpose | The xenon headlamp ignition modules (E1n2, E2n2) ignite by means of a high-voltage pulse each of the xenon bulbs for the left low beam and right low beam. |
