Switch and controls illumination, function - GF82.20-P-0003R

MODEL 230

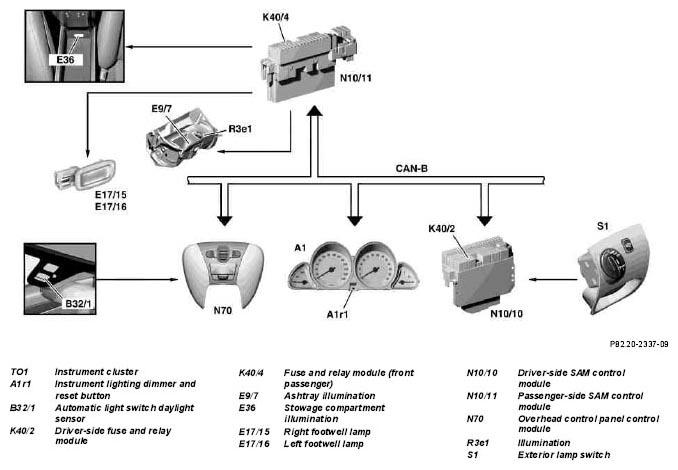

Networking of components

The following lights are switched on/off under the same conditions:

• Ashtray illumination (E9/7)
• Cigar lighter illumination (R3e1)
• Stowage compartment lighting (E36)
• Right footwell lamp (E17/15)
• Left footwell lamp (E17/16)

Switching on the lights

• manually, by switching the parking light or driving light on with the exterior lamp switch (S1) or
• automatically, if the automatic headlamp on control is activated at the instrument cluster (A1) and  night has been detected.

Switching the lights off

• The lamps are switched off immediately after the requirements stated above no longer exist, or in the case of undervoltage or overvoltage.

Data required:

• Status of circuit 58d of instrument cluster (A1)

Actuation of the remaining lamps

The lamps are actuated by the passenger-side SAM control module (N10/11)  .

The control module actuates the lamps as soon as the CAN message on/off ratio circuit 58d > 5% is received from the instrument cluster (A1). The lamps cannot be dimmed.

Data required:

• Status of circuit 58d of instrument cluster (A1)



  • With the exception of the cigar lighter illumination (R3e1), illumination is provided by LEDs.
  • Only the switch lighting can be dimmed. The setting is performed using the instrument lighting dimmer and reset button (A1r1).
