Disconnect brake cables - AR42.20-P-0520-03R

PARKING BRAKE

Number	Designation		Model 230
BA42.20-P-1005-01A	Bolt, brake cable at cable slack adjuster	Nm	12

Fig 1: Identifying Snap-Release Tool (129 589 11 63 00)

Courtesy of MERCEDES-BENZ USA

1. Loosen bolt (89) by several threads
2. Detach the return spring (94) from its mount.
3. Unscrew front brake cable (85) from intermediate lever (91)
4. Detach cable length adjusters and remove.
5. Disconnect rear brake cables (86) from bracket on frame floor assembly using unclipping device.

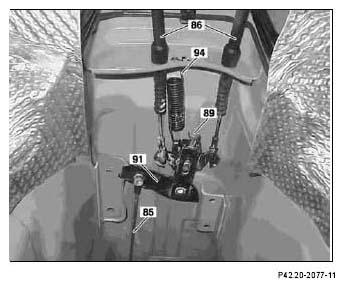

   Fig 2: Identifying Rear Brake Cables

   Courtesy of MERCEDES-BENZ USA
