Remove/install left or right rear axle speed sensor - AR42.40-P-0820R

MODEL 230

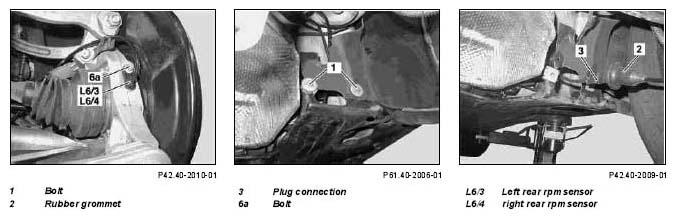

Fig 1: Identifying Left Or Right Rear Axle Speed Sensor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Unscrew bolt (6a)
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
			*BA42.40-P-1002-01B
2	Pull out left rear RPM sensor (L6/3) or right rear RPM sensor (L6/4) from wheel carrier	Installation:  Ensure that magnetic edge is clean. Fix electrical feed line for RPM sensor in the retaining clips provided in such a way that it is not damaged when the vehicle suspension is compressed or rebounds. Installation:  Lightly grease bore in wheel carrier with MB long-life grease.
		Long-life grease	*BR00.45-Z-1005-06A
3	Remove bolts (1)
4	Press inner paneling of fender to one side and pull rubber grommet (2) out of body
5	Detach rubber grommet (2) from connector (3)
6	Release and disconnect connector (3).
7	Install in the reverse order	Installation:  Ensure that the electrical feed line to the RPM sensor has sufficient play. The vehicle suspension must be able to fully compress and rebound without damaging the feed line. The feed line should not chafe at any point, as this could lead to system failure.
8	Connect STAR DIAGNOSIS, read out fault memory and erase if necessary	STAR DIAGNOSIS diagnostic system	AD00.00-P-2000-04A *WH58.30-Z-1048-13A

ACCELERATION SLIP REGULATION

Number	Designation		Model 230
BA42.40-P-1002-01B	Self-locking bolt, rear axle speed sensor	Nm	8

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnostic system, Compact Passenger Car	6511 1801 00

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
