Relay assignment of fuse and relay box in left side of engine compartment - GF54.15-P-1257-03RI

Fig 1: Identifying K40/2 Driver-Side Fuse And Relay Module
G00543130Courtesy of MERCEDES-BENZ USA

Relay designations:

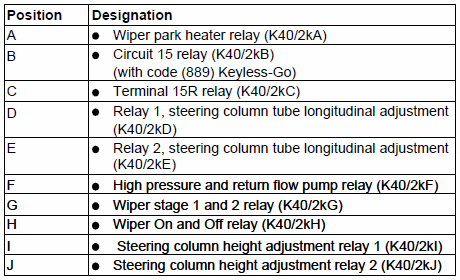

Fig 2: Relay Designations
G00543131Courtesy of MERCEDES-BENZ USA
