Rear Sidebag - Location/Task/Design/Function - GF91.60-P-4015SA
MODEL 215 Applicable as of 1.6.00
Rear sidebag modules are installed as standard equipment in this vehicle. They are located along the rear side panels near the wheel wells.

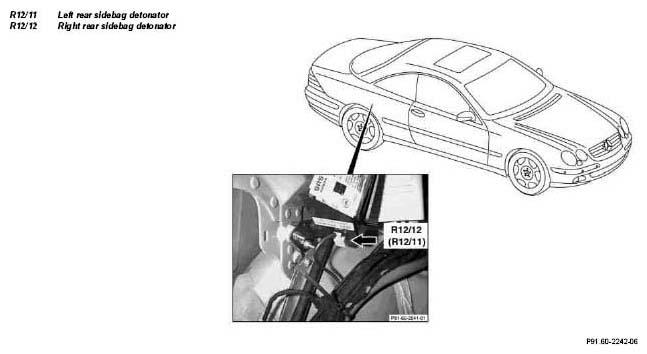

| Rear Sidebag - Location | The rear sidebags and the left and right rear sidebag detonators (R12/11, R12/12) are installed along the rear side panels near the wheel wells. | ||
| Rear Sidebag - Task | The left/right rear sidebag serves to protect rear seat occupants from upper body and head injuries in the event of a side-impact collision affecting the door, B-pillar or C-pillar areas. Each rear sidebag is deployed simultaneously with the respective front sidebag and the windowbag. | ||
| Rear Sidebag - Design | The rear sidebag modules consist of an inflator, a detonator and an airbag. The airbags are made of an uncoated and recyclable polyamide fabric and have a volume of 16 liters when inflated. | ||
| Rear Sidebag - Function | GF91.60-P-4015-02S |
