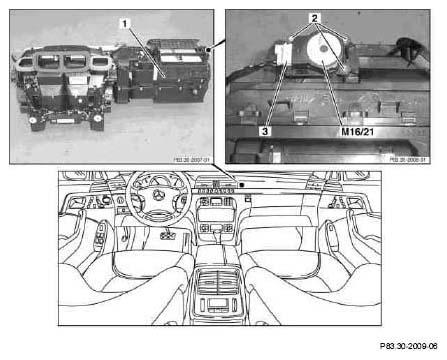

Fresh air/recirculated air flap actuator motor, location - GF83.30-P-2105-01I
Illustrated on model 220
The fresh air/recirculated air flap actuator motor (M16/21) is located on the right side of the A/C housing between the fresh air and recirculated air flap.
