Duo valve, location - GF83.20-P-2100-02M

The duo valves (A31/1y1, A31/1y2) are located next to the rear air conditioning's coolant recirculation pump (A31/1m1) in the rear right wheelhouse.

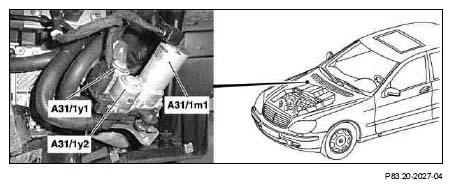

Fig 1: Identifying Duo Valve And Coolant Circulation Pump Location
G04851357
