Center vent electronics control module, location - GF83.40-P-2142-01I

Illustrated on model 220

The center vent electronics control module is permanently integrated into the center vent (1).

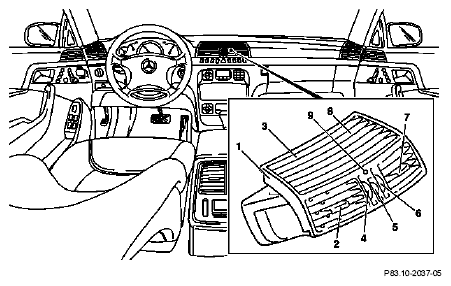

Fig 1: Identifying Center Nozzle Components - Model 220
G04851414
