Manual trigger switch location and function - GF86.10-P-2102MB
MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection with fire extinguishing system

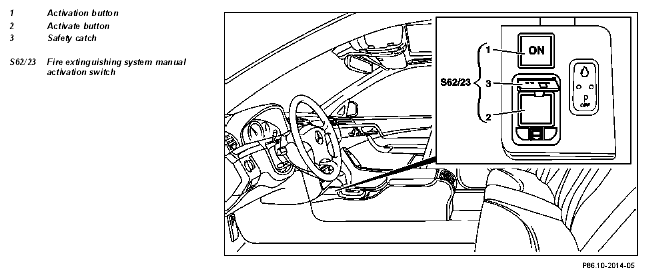

| Location of manual activation switch | The fire extinguishing system manual activation switch (S62/23) is in the center console stowage compartment in front of the selector lever. | ||
| Manual activation switch design feature | Fire extinguishing system manual activation switch (S62/23) is designed as a dual-function switch:
The triggering switch (2) is protected by a safety catch (3). |
