Fire extinguishing system control module location/task - GF86.10-P-2104MB
MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection with fire extinguishing system

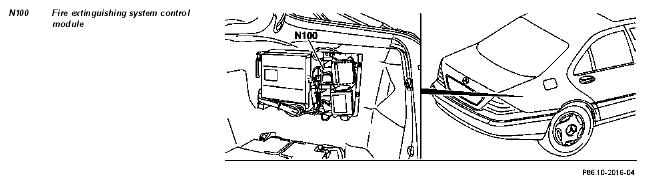

| Fire extinguishing system control module location | The fire extinguishing system control module (N100) is in the luggage compartment at the right side wall. | ||
| Fire extinguishing system control module task | Actuation and monitoring of the individual fire extinguishing system components. |
