Front door control module, front passenger side, location/design - GF72.29-P-4116S
MODEL 215, 220 as of 1.9.02

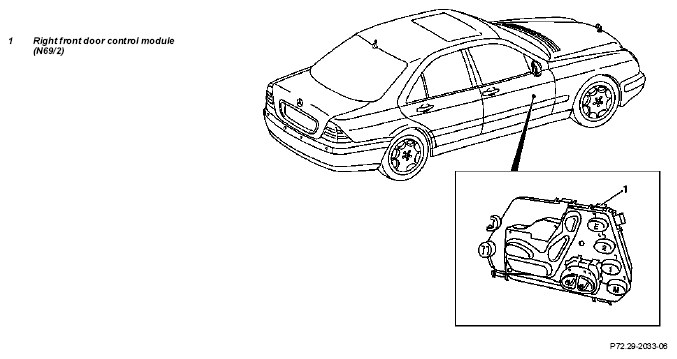

Location shown on model 220 with left-hand steering
| Right front door control module, location | The right front door control module (N69/2) (right-hand steering: left front door control module (N69/1)) is located in the front passenger door below the inner paneling. | ||
| Right front door control module, purpose | The door control module connected to the CAN bus serves to control the power window motor, the outside rearview mirror, to actuate the lamps of the inner and switch illumination and to control the solenoid valve for power closing. |
