Trunk lid relay position/task/design - GF80.20-P-4116A

MODELS 215, 220 with CODE (881b) Remote trunk locking (RTL)

Shown on model 220

(with hydraulic ram removed)

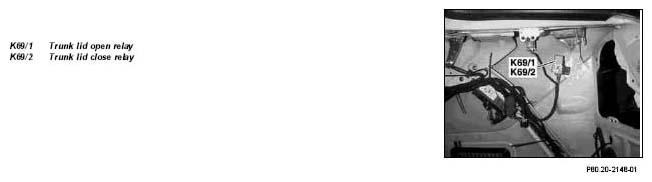

Fig 1: Identifying Trunk Lid Open And Close Relay - Shown On Model 220

	Trunk lid relay, position	The two relays, trunk lid open relay (K69/1) and trunk lid close relay (K69/2) are located in a common plug-in socket behind the paneling in the trunk at the right.
	Trunk lid open relay, task	Switching on and off of the hydraulic pump RTL (M51) Selection of direction of rotation for hydraulic pump RTL (M51) via the respective position of the switching contact.
	Trunk lid open relay, design	Each relay consists of a changeover switch between ground and terminal 30, and a relay coil. The relay coil is driven directly by the pneumatic control module (combined) (A37).
