Keyless go, location of components - GF80.61-P-0005-01SM

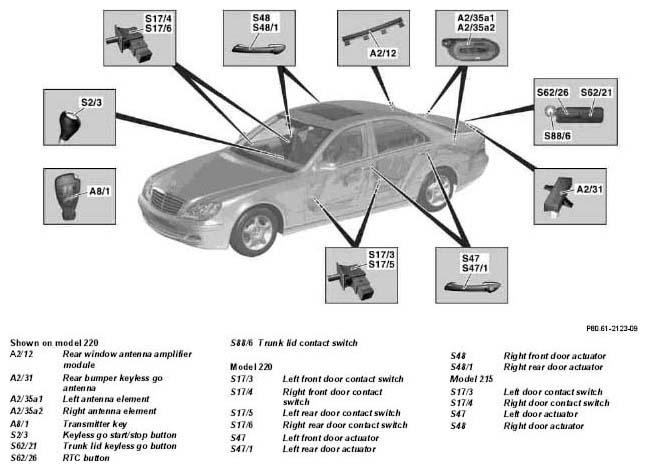

Fig 1: Identifying Keyless Go Components Location - Shown On Model 220,215 (1 Of 2)
G04850179

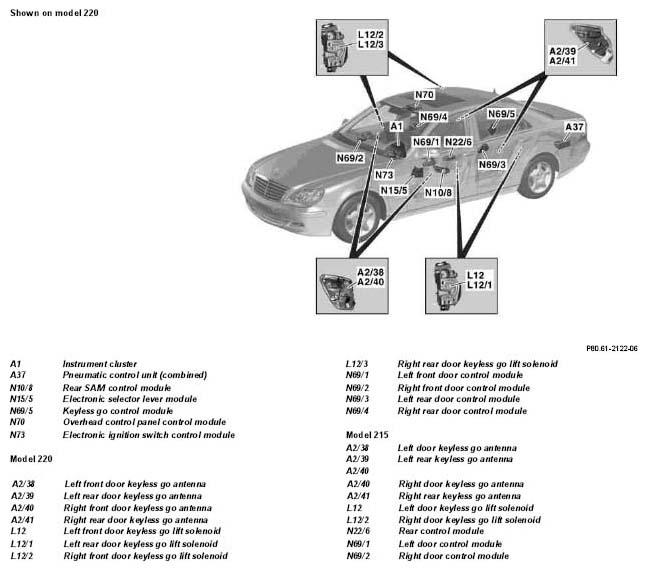

Fig 2: Identifying Keyless Go Components Location - Shown On Model 220,215 (2 Of 2)
G04850180
