Infrared receiver, location - GF80.20-P-4101-01S
Model 220

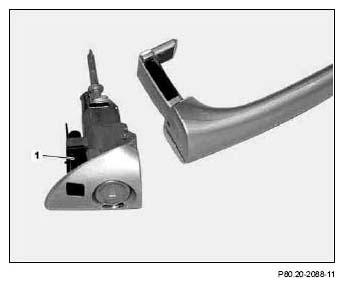

The infrared receiver (1) is installed in the front section of the door handle.
Fig 1: Identifying Infrared Receiver Location
