Hydraulic ram position/task/design - GF80.20-P-4111A
MODELS 215, 220 with CODE (881b) Remote trunk locking (RTL)

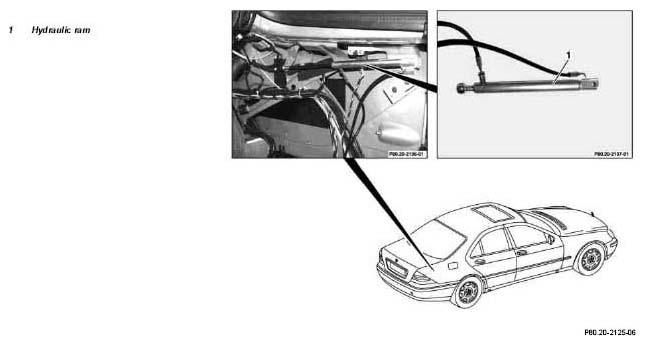

Shown on model 220
| Hydraulic ram, position | In trunk behind upper right paneling | ||
| Hydraulic ram, task | Exertion of forces on to the multiple-jointed hinge for the hydraulic opening and closing of the trunk lid | ||
| Hydraulic ram, design | Hydraulic ram with two hydraulic lines |
