Remove/install operating / display unit with control unit - AR82.85-P-7472I
MODEL 220 up to 31.8.02 with CODE (352a) COMAND operating and display system
| Remove/install | |||
| 1 | Connect no load current retention unit | AR54.10-P-1030-07I | |
| CMP 12.2 quiescent current retention unit | *WH58.30-Z-1012-09A | ||
| Risk of explosion caused by explosive gas. Risk of poisoning and caustic burns caused by swallowing battery electrolyte. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | Model 220.028 with CODE (450) Taxi version. Models 220.070/075/175/178/875/878 as of 1.1.01. |
AH54.10-P-0002-01A | |
| 3 | Remove cover on center console | AR68.20-P-2350M | |

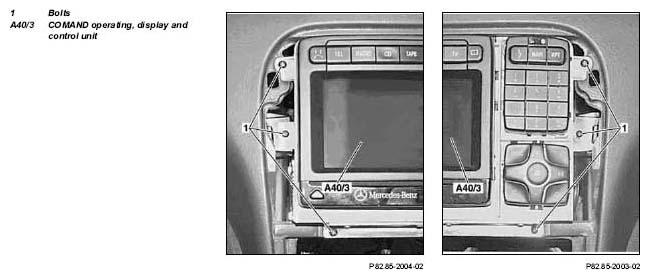

| 4 | Unscrew bolts (1) and pull out COMAND operating, display and control module (40/3) | ||
| 5 | Disconnect electrical connectors | ||
| 6 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
