Removing and installing Keyless Go control module - AR80.35-P-0001M
MODEL 215, 220 with CODE (889) Keyless Go

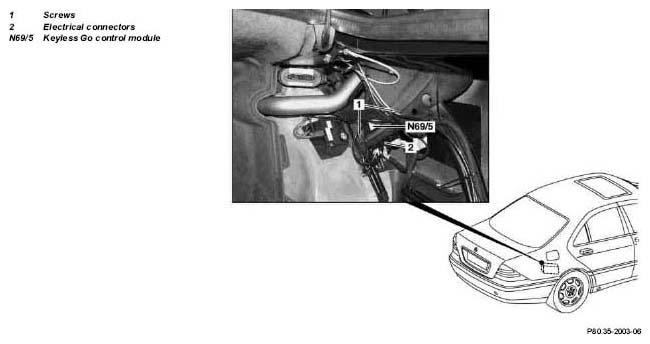

Illustrated on model 220
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| 2 | Disconnect ground lead from battery | AR54.10-P-0003I | |
| 3 | Remove paneling in trunk | AR68.30-P-4600M | |
| 4 | Unscrew screws (1) and remove keyless Go control module (N69/5) | ||
| 5 | Unlock electrical connectors (2) on Keyless Go control module (N69/5) and remove | ||
| 6 | Install in opposite order |
