Trailer recognition control module location/task - GF80.50-P-4111S
MODELS 215, 220 with CODE (550) Trailer coupling with CODE (551a) Anti-theft alarm system (ATA)

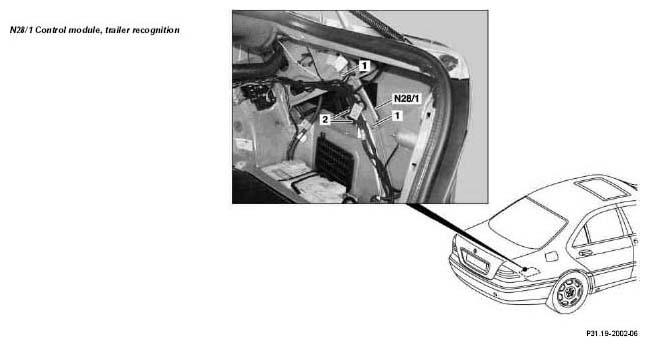

Shown on model 220
| |
Location |
On right side in trunk. |
|
| |
Purpose |
- Activation of the trailer lights
- Monitoring of swinging trailer hitch (special equipment)
|
|
