PSE control module (combined), location - GF80.20-P-4106-01S

Models 215, 220

The PSE control module (combined) (A37) is located behind the paneling in the trunk on the left side above the wheelhouse. It is positioned in foam padding.

Illustrated on model 220

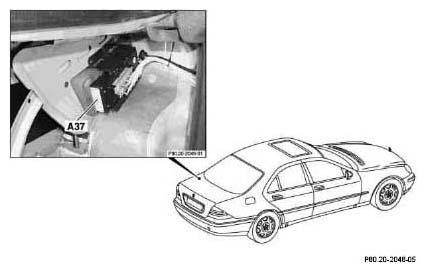

Fig 1: Identifying PSE Control Module (Combined) - Illustrated On Model 220
G04850158
