Central locking (CL), function - GF80.20-P-0005S: Notes
MODELS 215, 220

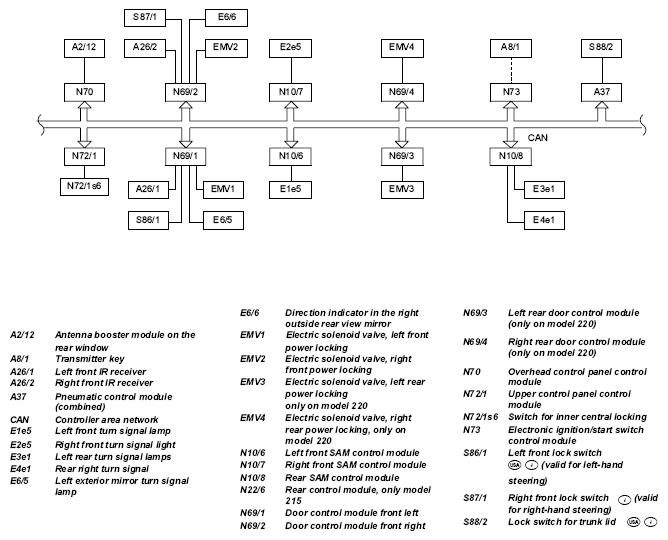

Interlinkage of central locking (CL), illustrated on model 220
The central locking controls the authorization for access to the passenger compartment. The central locking can be operated in various manners:
- Remote control with remote control key
- Operation with the interior switch.
- Control with mechanical key.
- By opening the driver's door from the inside
- Remote control via Keyless Go card (only with code 889)
On model 215 the rear door control modules (N69/3, N69/4) are replaced by the rear control module (N22/6).
Power locking:
The power locking feature completely closes a door or trunk lid when it has only been pushed up to the first catch.
The functions for opening the trunk lid are described in the function description for remote trunk release (RTR)
| Central locking (CL), location of components | GF80.20-P-0005-01S | ||
| Operating CL with remote control key, function | GF80.20-P-2002S | ||
| Operating CL with mechanical key, function | GF80.20-P-2004S | ||
| Unlocking by opening a door, function | GF80.20-P-3004S | ||
| Locking/unlocking vehicle with interior switch, function | GF80.20-P-3009S | ||
| Headlamp delayed switch-off, function | up to 31.5.00 | GF80.20-P-2003S | |
| as of 1.06.00 | GF80.20-P-2003SA | ||
| Remote trunk release (RTR), function | GF80.20-P-0006S | ||
| Power locking for doors, function | GF80.40-P-3001S |
