Anti-theft alarm (ATA), function - GF80.50-P-0001S: Notes
MODEL 215, 220 with CODE (491) US version
MODEL 215, 220 with CODE (551a) Anti-theft alarm (ATA)

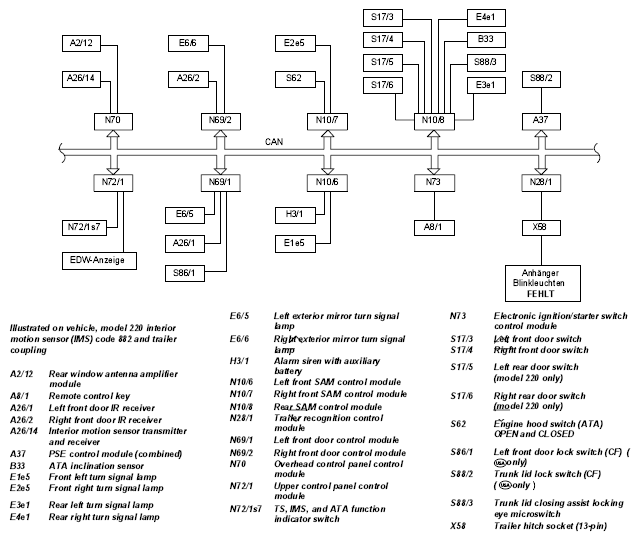

ATA system interlinkage
The anti-theft alarm (ATA) is a contact-controlled system with acoustic and optical alarm signal.
The left front SAM control module (N10/6) is the main control module (master) for the ATA functions.
The ATA is active when the vehicle is locked by the central locking. Exception: with automatic locking and locking with the interior switch.
| Anti-theft alarm (ATA), location of components | GF80.50-P-0001-02S | ||
| Activation of anti-theft alarm (ATA), function | GF80.50-P-2002S | ||
| Deactivation of anti-theft alarm (ATA), function | GF80.50-P-2003S | ||
| Alarm triggering of anti-theft alarm (ATA), function | GF80.50-P-2004S |
