Remove/install front door lining - AR72.10-P-1000MB
MODEL 220.1 /8 with CODE (Z07) Top protection
Shown on model 220 up to vehicle identification end no.: 316717
Shown on model 220 up to vehicle identification end no.: 316717
Shown on model 220 as of vehicle identification end no.: 316717
| Remove/install | |||

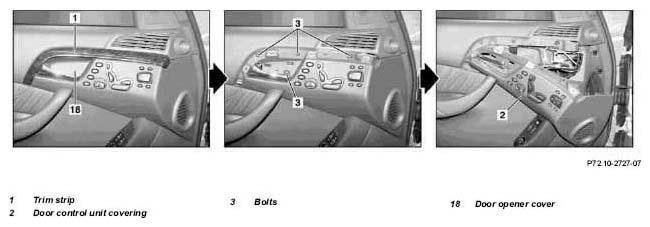

| 1 | Press trim strip (1) off of door control unit covering (2). | Figure | |
| 2.1 | Remove door opener cover (18) | As of vehicle identification end no.: 316717 | |
| Figure | |||
| 3 | Remove bolts (3) | ||

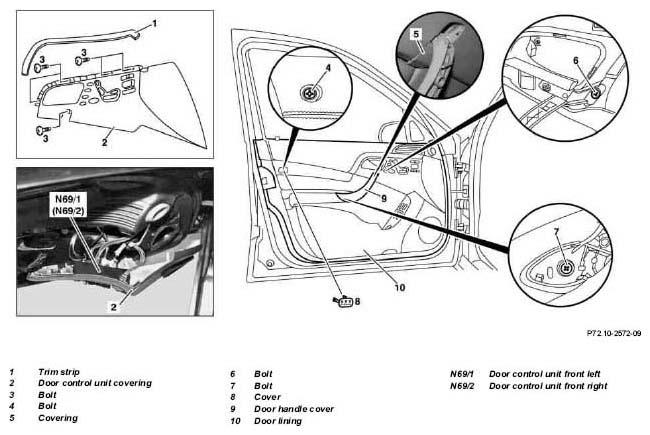

| 4 | Press door control unit covering (2) off of door lining (10) | Figure | |
| 5 | Disconnect electrical connector from left front door control unit (N69/1) or right front door control unit (N69/2) and remove door control unit covering (2). | ||
| 6.1 | Remove door handle cover (9) from door handle | Up to vehicle identification end no.: 316717 | |
| Figure | |||
| 7.1 | Remove covering (5) from door handle | Up to vehicle identification end no.: 316717 | |
| Figure | |||
| 8 | Unscrew bolts (6, 7) from door handle | ||
| 9 | Take off cover (8) | ||
| 10 | Unscrew bolt (4) | ||

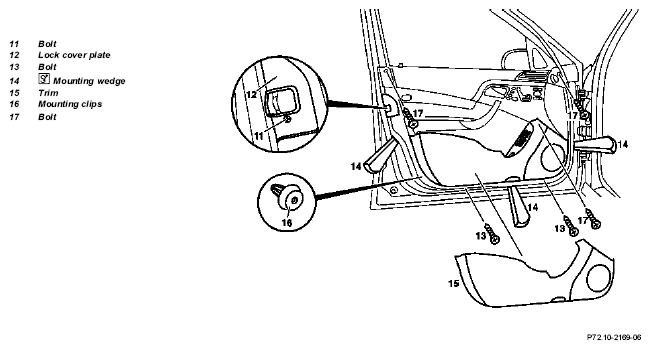

| 11 | Unscrew bolt (11) from lock cover plate (12) and remove lock cover plate (12) | ||
| 12 | Unscrew bolts (13) from trim (15) and remove trim (15) downward | ||
| 13 | Remove bolts (17) | ||
| 14 | Press door lining (10) off of inner door panel and remove upward. | ||
| Figure | |||
| 15 | Unhook operating cable from inside door opener | ||
| 16 | Disconnect electrical connector on door lining (10) and lay down door lining (10). | ||
| 17 | Check door foil and mounting clips (16), replace door foil if necessary. | ||
| 18 | Install in the reverse order |
