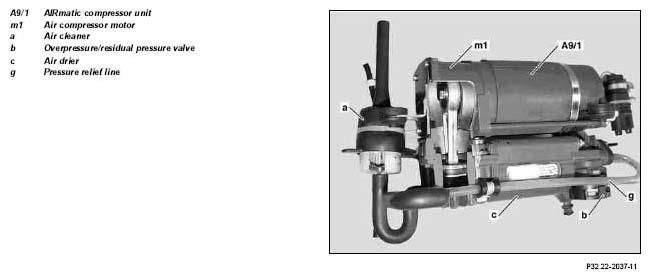

Compressor unit, location / task / design / function - GF32.22-P-4101B: Notes
MODELS 211, 240 with CODE (489a) Airmatic (semi-active air suspension)
MODEL 211.2
MODEL 220 except CODE (487a) Active body control (ABC)
| Compressor unit, location | Model 211 | GF32.22-P-4101-01E | |
| Model 220 | GF32.22-P-4101-01B | ||
| Model 240 | GF32.22-P-4101-01MB | ||
| Compressor unit, task | The electric compressor generates the pressure required to lift the vehicle. The pressure relief valve integrated in the compressor unit is used to lower the vehicle. | ||
| Compressor unit, design | GF32.22-P-4101-02B | ||
| Compressor unit, function | GF32.22-P-4101-03B |
