Remove, install tire pressure monitoring system control unit - AR40.15-P-0100M

MODELS 215.373 /374 /375 /376 /378 /379, 220.025 /125 /026 /126 /028 /128 /063 /065 /165 /067 /167 /070 /170 /073 /173 /074 /174 /075 /175 /176 /178 /179 /083 /183 /084 /184 /087 /187 /875 /878 with CODE (475) Tire pressure indicator

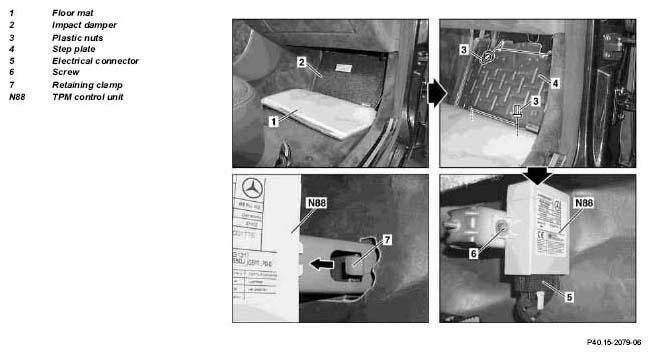

Fig 1: Identifying Tire Pressure Monitoring System Control Unit Remove/Install Components

	Remove/Install
1	Read out variant coding of TPM [RDK] control unit (N88)	To do this, connect STAR DIAGNOSIS and read data from TPM [RDK] control unit (N88) into STAR DIAGNOSIS. Installation:  Transfer stored data into the new TPM [RDK] control unit (N88)
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A
2	Move passenger seat to rearmost position.
3	Remove floor mat and lift back floor covering (1) in passenger footwell.
4	Remove impact absorber (2)
5	Unscrew plastic nuts (3) and take out step plate (4)
6	Unlock electrical connector (5) and disconnect plug from TPM [RDK] control unit (N88)
7	Unscrew bolt (6) and take TPM [RDK] control unit (N88) out of the retaining clamp (7)
8	Install in the reverse order
9	Read out fault memory and erase if necessary
	Connect STAR DIAGNOSIS, read out fault memory		AD00.00-P-2000-04A
10	Activate the tire pressure monitoring system	See ↓
		Perform adjustments on control system.	AR54.30-P-1000-02RAM
