Bleeding pressure from Active Body Control (ABC) hydraulic system - AR32.50-P-0001-01N

Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid.

Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.

AS00.00-Z-0013-01A

ACTIVE BODY CONTROL, LINES

Number	Designation			Model 215	Model 216	Model 220
BA32.50-P-1001-02B	Bleed screw on soldered fitting in hydraulic line	M10x1	Nm	20	20	20

ACTIVE BODY CONTROL, LINES

Number	Designation			Model 221	Model 230
BA32.50-P-1001-02B	Bleed screw on soldered fitting in hydraulic line	M10x1	Nm	20	20

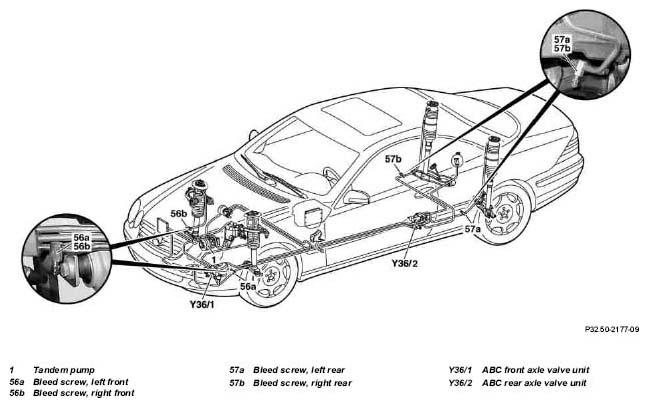

Fig 1: Identifying Tandem Pump, Bleed Screw And ABC Front Axle Valve Unit (Shown On Model 215)

Shown on model 215

The engine must be switched off for at least 10 minutes. Open bleed screws carefully so that the hydraulic fluid can drain out slowly to prevent the body from dropping too rapidly.

The pressure can be relieved separately for the front axle (respective bleed screws), rear axle (respective bleed screws) or for the respective suspension strut (respective bleed screw).

Collect hydraulic fluid which runs out in a suitable container and dispose of it.

Use the circuit's bleed screw to drain the hydraulic fluid.
