Pressing track control arm from the stub axle assembly - AR33.15-P-0170-01I

MODIFICATION NOTES

17.8.04

Torque of nut, spring control arm to steering knuckle revised from 80 Nm to 50 Nm and 60 ∠°.

Only model 215

*BA33.20-P-1012-01A

WHEEL LOCATION, HUB

Number	Designation			Model 215	Model 220 except 220.08/18
BA33.20-P-1012-01A	Self-locking nut, track control arm to stub axle	1st stage	Nm	50	50
		2nd stage	∠°	60	60

Fig 1: Identifying Puller (220 589 00 33 00)

Fig 2: Identifying Press (163 589 03 43 00)

Fig 3: Identifying Thrust Piece (140 589 00 63 00)

1. Unscrew the self-locking nut of spring link supporting joint (17).
2. Screw the thrust washer (044a) onto the carrying joint.
3. Apply the puller (035).
4. Use a press (064) to press the track control arm (17) out of the stub axle (5) by turning the spindle (arrow).

   Do not damage the rubber boot on the supporting joint when pressing out.

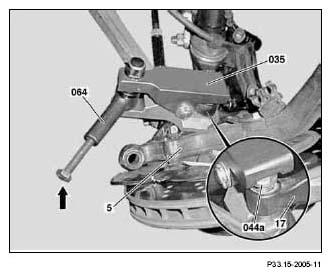

   Fig 4: Identifying Spring Link Supporting Joint, Thrust Washer, Puller And Stub Axle
