Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |

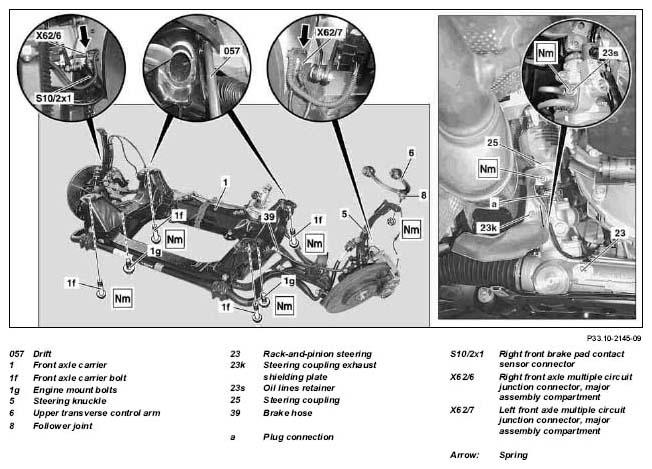

If there is visible damage, e.g. crack formation or deformation of the front axle carrier (1), these parts must be replaced |
|
|
|
When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected |
|
|
|
Replace self-locking nuts and bolts. |
|
AH00.00-N-0001-01A |
 Installation |
Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition. |
|
|
| 1 |
Deactivate easy entry/exit function for driver seat and steering wheel |
Vehicles with memory package (driver seat, steering column, mirrors) code 275
Otherwise the driver seat and steering wheel move into a different position if the driver door is opened or closed for example.
Damage to the upper frame can occur when the
holding device is installed.
Deactivation is done using the buttons on the steering wheel in the "comfort" menu of the multifunction display; see operator's manual. |
|
| 2 |
Turn front wheels to straight-ahead position and secure steering wheel with
retainer. |
Swivel sun visor to side and
insert retainer. |
|
| |
|
On a disengaged steering coupling (25) the steering wheel should not be turned because the spiral contact coil will be destroyed. |
|
| |
|
|
Figure |
| 3 |
Remove left and right front axle shaft |
|
AR33.30-P-0620I |
| 4 |
Guide joints into the lower transverse control arm and attach with nuts. |
Supporting joints are pressed off after removing front axle shafts. |
|
| 5 |
Remove front suspension struts |
|
AR32.25-P-1017IW |
| 6 |
Remove engine suction fan ducts in front of air filter |
|
|
| 7 |
Pull off cover on engine end face upstream of the air filter |
|
|
| 8 |
Suction off oil from expansion reservoir of power steering |
Hand pump |
Figure |
| 9 |
Mount the engine support frame and raise the engine until the front engine mounts are completely relieved of load |
|
AR01.10-P-7500-03I |
| |
|
Engine support frame http://gotis.aftersales.daimlerchrysler.com |
|
| 10 |
Unplug right front axle electrical distributor and left major assemblies compartment connectors (X62/6, X62/7) in wheelhouse, unclip lines. |
Connectors of damping valve unit and rpm sensor. To detach, press in spring (arrow). |
|
| 11 |
Unplug right front brake pad contact sensor connector (S10/2x1) in wheelhouse and unclip lines. |
Only fitted on the right-hand side. |
|
|
Notes on installing brake pad wear sensor contact sensors |
|
AH42.10-P-0003-01A |
|
Risk of poisoning
caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. |
AS42.50-Z-0001-01A |
| 12 |
Unscrew brake lines from brake hoses (39) and seal openings. |
When loosening or tightening the brake line to the brake hose (39) ensure that the bracket is not twisted. Counterhold at two flats on brake hose (39) using open wrench if necessary.
Seal line connections immediately with
plugs. The brake fluid expansion reservoir must not be allowed to run completely empty. |
|
| |
|
Box wrench bit |
Figure |
| |
|
Set of plugs |
Figure |
| |
|
Installation:
The brake hoses (39) must not be twisted after being tightened (danger of cracking). |
|
|
Brake fluid notes |
|
AH42.50-P-0001-01A |
|
Notes on installing brake hoses |
|
AH42.10-P-9406-01A |
| |
|
 |
*BA42.10-P-1001-04A |
| 13 |
Press follower joints (8) out of steering knuckles (5) |
|
AR33.20-P-0500-01N |
| |
|
|
*BA33.20-P-1018-01A |
| |
|
Thrust piece M 10x1.5 |
Figure |
| |
|
Puller |
Figure |
| 14 |
Installing protective washers to protect brake disk dust shields |
|
AR42.00-P-0100-01A |
| |
|
|
Figure |
| 15 |
Detach electrical connector (a) at control valve of rack-and-pinion steering (23) and unclip line at exhaust shielding plate (23k) of steering coupling (25) and at front axle carrier (1). |
|
|
| 16 |
Detach exhaust shielding plate (23k) of steering coupling (25) at control valve of rack-and-pinion steering (23). |
Three bolts. |
|
| 17 |
Unscrew lower bolt of steering coupling (25) on rack-and-pinion steering (23) |
To do so rotate steering coupling (25) into corresponding position. |
|
| |
|
|
*BA46.10-P-1002-01E |
| 18 |
Carefully pull steering coupling (25) out of control valve of rack-and-pinion steering (23) (predetermined breaking point on control valve). |
Do not use force (hammer, strong lever action) since the lower steering shaft is sensitive to lateral impacts. |
|
| |
|
Installation:
↓
Turn rack-and-pinion steering to center position and install steering coupling (25). |
AR46.20-P-0600-01P |
| 19 |
Remove supply and return line of steering rack (23) at front axle carrier (1). |
The three brackets are located on the left side of the front axle carrier (1). |
|
| 20 |
Detach retaining plate (23s) of oil lines from rack-and-pinion steering (23) and pull out oil lines. |
Seal line connections and line openings with
stop plugs.
Installation:
replace O-rings. |
|
| |
|
Set of plugs |
Figure |
| |
|
|
*BA46.20-P-1006-01E |
| 21 |
Remove bolts (1g) of engine mount at front axle carrier (1) |
|
*BA22.10-P-1001-01L |
| 22 |
Prop front axle carrier (1) using transmission platform and transmission jack |
|
AR33.10-P-0100-03I |
| 23 |
Remove bolts (1f) of front axle carrier (1). |
The bolts (1f) are self-tapping, so the following points must be observed:
- Never recut the thread in the longitudinal member
- Replace bolts
- Use only original bolts (4 x)
- Do not attach bolts at an angle when screwing in
- Do not use an impact bolt tightener
- Observe tightening torque
Installation:
Before tightening bolts (1f), align front axle carrier (1) on left and right using drift (057, 11 mm dia.). After this, insert rubber plugs. |
|
| |
|
Drift set |
Figure |
| |
|
|
*BA33.10-P-1003-01A |
| 24 |
Lower front axle carrier (1) |
Secure front axle carrier (1) against falling down or slipping off. |
|
| 25 |
Remove upper transverse control arm (6) |
If necessary |
AR33.20-P-0500I |
 |
Checking |
|
|
| 26 |
Check front axle carrier (1) for signs of damage and if damage determined replace parts |
|
|
| 27 |
Install in the reverse order |
|
|
|
Risk of accident
when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work |
Depress brake pedal several times before operating vehicle until pressure is built up and maintained in the brake system |
AS42.50-Z-0002-01A |
| 28 |
Bleed brake system |
|
AR42.10-P-0010I |
| 29 |
Fill power steering pump and bleed |
|
AR46.30-P-0010B |
| 30 |
Perform a wheel alignment check |
|
AR40.20-P-0200I |
