Removing and installing SPS solenoid valve - AR46.50-P-6000T

MODELS 203, 209, 211 with CODE (213) Speed-sensitive power steering

MODELS 215, 220, 230

Shown on rotary valve housing and control bush housing, model 215, 220

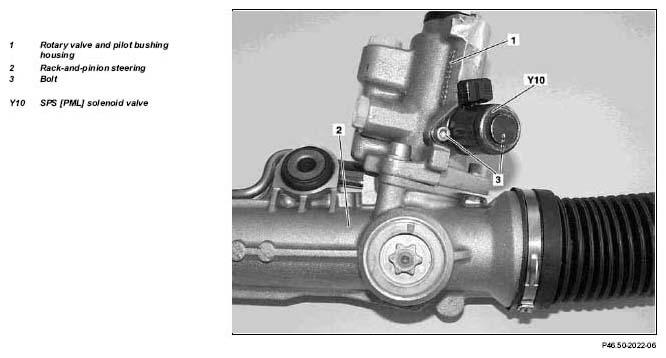

Fig 1: Identifying SPS Solenoid Valve Remove/Install Components - Shown On Rotary Valve Housing And Control Bush Housing, Model 215, 220

MODIFICATION NOTES

20.1.04

Due to close tolerances the vehicle must not be measured anymore after replacing the lower radial sealing ring

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove rack-and-pinion steering (2)	Model 203 without 4MATIC, 209	AR46.20-P-0600P
		Model 203 with 4MATIC	AR46.20-P-0600PW
		Model 211 except 211.028/276/6 without 4MATIC	AR46.20-P-0600T
		Model 215 except 215.379, model 220 except 220.163/179/08/18 Model 215.379/220.163/179	AR46.20-P-0600I
		Model 220.176	AR46.20-P-0600M
		Model 211 with 4MATIC, 220 with 4MATIC	AR46.20-P-0600IW
		Model 30	AR46.20-P-0600R
2	Unplug electrical connector from SPS solenoid valve (Y10)
3	Unscrew bolts (3) and remove SPS solenoid valve (Y10)	Ensure the utmost cleanliness. No dirt must be allowed to enter the rotary valve and control bush housing (1) as this can cause damage to the steering gear. Installation: Replace bolts (3) and sealing ring on SPS solenoid valve (Y10). Ensure that the sealing ring is correctly seated.
		Model 203, 209, 211	*BA46.20-P-1011-01F
		Model 215, 220, 230	*BA46.20-P-1007-01E
4	Install in the reverse order
5	Check speed-sensitive steering function with STAR DIAGNOSIS and read out fault memory
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

STEERING GEAR

Number	Designation		Model 215	Model 220.025/026/ 028/063/065/ 067/070/073/ 074/075/125/ 126/128/163/ 165/167/170/ 173/174/175/ 176/178/179/ 875/878	Model 220.083/084/ 087/183/184/187
BA46.20-P-1007-01E	Bolt, speed-sensitive power steering valve to rack-and-pinion steering	Nm	5	5	5

STEERING GEAR

Number	Designation		Model 230
BA46.20-P-1007-01E	Bolt, speed-sensitive power steering valve to rack-and-pinion steering	Nm	5

STEERING GEAR

Number	Designation		Model 203 except 203.081/ 084/087/ 092/281/ 284/287/ 292	Model 203.081/ 084/087/ 092/281/ 284/287/ 292	Model 209
BA46.20-P-1011-01F	Bolt, speed-sensitive power steering valve to rack-and-pinion steering	Nm	5	5	5

STEERING GEAR

Number	Designation		Models 211 except 211.08/09/ 28/29	Model 211.08/ 09/28/29
BA46.20-P-1011-01F	Bolt, speed-sensitive power steering valve to rack-and-pinion steering	Nm	5	5

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
