Remove/install pipeline between control head and steering gear housing. - AR46.20-P-3501T

MODEL 211, 219, 220

Shown on model 211

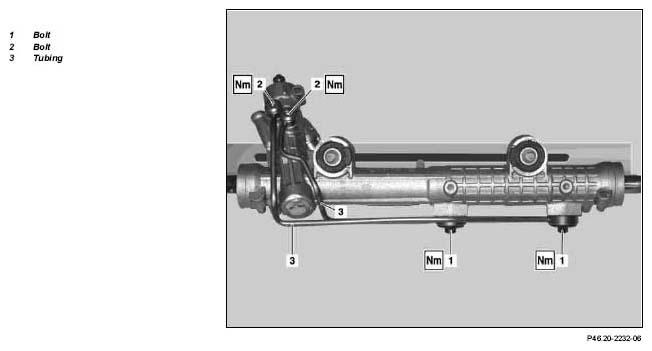

Fig 1: Identifying Tubing And Bolt

	Remove/install
1	Remove rack-and-pinion steering	Model 211.08/09/ 28/29	AR46.20-P-0600IW
		Model 220.08/18
		Models 211 except models 211.08/09/28/29	AR46.20-P-0600T
		Model 219	AR46.20-P-0600TX
		Models 220 except models 220.08/18/ 176/179	AR46.20-P-0600I
		Model 220.176/179	AR46.20-P-0600M
2	Mount steering on steering gear housing support	During the following work the utmost cleanliness must be assured in the workplace and while carrying out repairs, otherwise the function of the steering gear may be impaired. Before starting the repair, remove loose contamination on the steering gear without using cleaning agent
			*203589043100
3	Unscrew bolt (1) on leaky pipeline (3)	Model 211	*BA46.20-P-1010-01F
		Model 219	*BA46.20-P-1007-01J
		Model 220	*BA46.20-P-1014-01E
4	Remove bolt (2) from leaky pipe (3)	Model 211	*BA46.20-P-1009-01F
		Model 219	*BA46.20-P-1006-01J
		Model 220	*BA46.20-P-1013-01E
5	Remove leaky pipeline (3)	Installation:  Install new pipeline (3), otherwise leaks at the pipeline (3) can occur.
6	Install in the reverse order

STEERING GEAR

Number	Designation			Model 211 except 211.08/09/ 28/29	Model 211.08/ 09/28/29
BA46.20-P-1009-01F	Oil line to control head		Nm	28 (± 8)	28 (± 8)
BA46.20-P-1010-01F	Oil line to steer jacket	Stage 1	Nm	100	100
		2nd stage, loosen	∠°	-20	-20
		Stage 3	Nm	90	90

STEERING GEAR

Number	Designation			Model 219
BA46.20-P-1006-01J	Oil line to control head		Nm	28 (± 8)
BA46.20-P-1007-01J	Oil line to steer jacket	Stage 1	Nm	100
		2nd stage, loosen	∠°	-20
		Stage 3	Nm	90

STEERING GEAR

Number	Designation			Model 220.025/026/ 028/063/065/ 067/070/073/ 074/075/125/ 126/128/163/ 165/167/170/ 173/174/175/ 176/178/179/ 875/878	Model 220.083/084/ 087/183/184/ 187
BA46.20-P-1013-01E	Oil line to control head		Nm	28 (± 8)	28 (± 8)
BA46.20-P-1014-01E	Oil line to steer jacket	Stage 1	Nm	100	100
		2nd stage, loosen	∠°	-20	-20
		Stage 3	Nm	90	90

Fig 2: Steering Gear Housing Support (203 589 04 31 00)
