Removing and installing dynamic seat control module - AR91.25-P-1800MB
MODELS 220.0 /1 as of 1.9.02 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat with CODE (803) Model year 2003

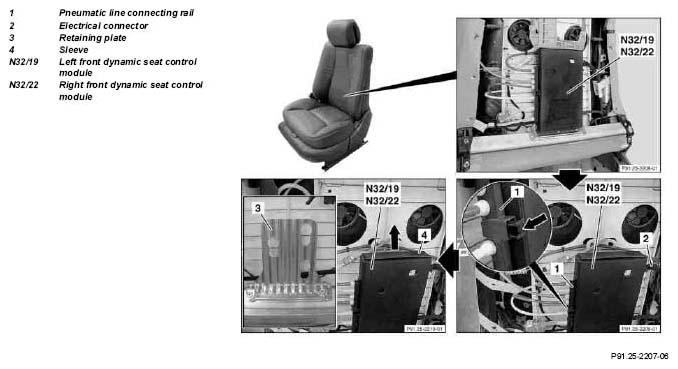

Fig 1: Identifying Dynamic Seat Control Module Remove/Install Components - Models 220.0 /1 As Of 1.9.02
| Remove/Install | |||
| 1 | Remove seat-back lining from front seat backrest | AR91.10-P-1910E | |
| 2 | Separate electrical connector (2) | ||
| 3 | Unclip and detach pneumatic line connecting rail (1) | ||
| 4 | Push left (N32/19), right (N32/22) front dynamic seat control module upwards and remove to rear | ||
| 5 | Remove left (N32/19), right (N32/22) front dynamic seat control module from sleeve (4) | ||
| 6 | Install in the reverse order |
