Removing and installing refrigerant temperature sensor - AR83.30-P-5630M
MODEL 215, 220
| Removal, installation | |||
| Explosion hazard when performing welding or brazing work on closed air conditioning. Poisoning hazard from inhaling overheated refrigerant vapors. Injury hazard from skin and eye contact with liquid refrigerant. | Do not perform any type of welding work on closed air conditioning system or in its vicinity. Smoking and open flame prohibited. Wear protective goggles and protective gloves, work only in well-ventilated rooms. Perform repair work on air conditioning circuit only with system emptied. | AS83.00-Z-0001-01A | |
| Action to be taken in the event air conditioning is damaged or leaks | AH83.30-N-0004-01A | ||
| Protect air conditioning circuit and components from moisture during repair work | AH83.30-N-0005-01A | ||
| Notes on handling R134a refrigerant | AH83.30-N-0003-01A | ||
| 1 | Empty air conditioning (recycle), evacuate, charge, check for leaks | ||
| 2 | Disconnect connector for refrigerant temperature sensor (3) | ||
| 3 | Unscrew refrigerant temperature sensor (B12/1) | Replace O-rings When connecting lines, moisten thread with compressor oil |
|

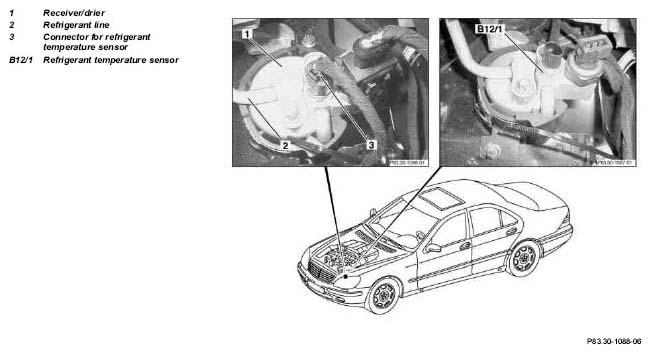

| *BA83.30-P-1008-01A | |||
| 4 | Replace receiver/drier | AR83.30-P-6520M | |
| 5 | Install in opposite order |
AIR CONDITIONING
| Number | Designation | Model 215 | Model 220 | |
|---|---|---|---|---|
| BA83.30-P-1008-01A | Refrigerant temperature sensor on receiver/drier | Nm | 6 | 6 |
