Removing and installing rear blower regulator - AR83.60-P-9010M

MODEL 220 with CODE (582) Rear air conditioning

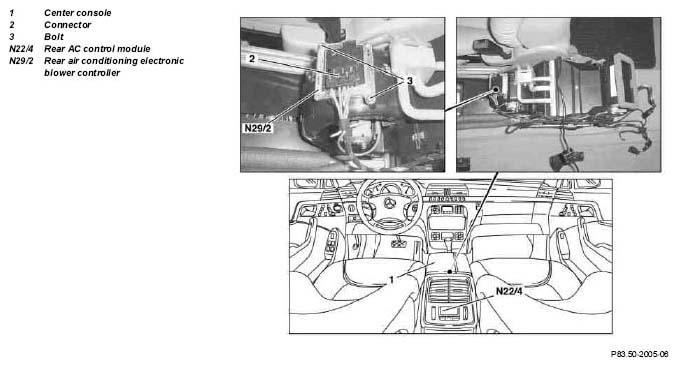

Fig 1: Identifying Blower Regulator (N29/2) Location

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove rear AC control module (N22/4)		AR83.50-P-9070M
2	Remove center console (1)	Except models 220.074/ 174.	AR68.20-P-2000M
		Only model 220.074/ 174.	AR68.20-P-2000AM
3	Disconnect connector (2)
4	Unscrew 2 bolts (3)
5	Remove electronic blower controller for rear air conditioning (N29/2)
6	Install in the reverse order
