Removing and installing air inlet - AR83.25-P-1401M

MODEL 215, 220

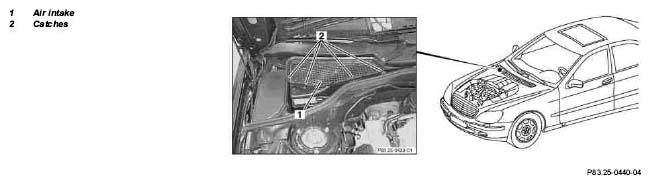

Fig 1: Identifying Air Inlet Location - Model 220
G04851470Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Removal, installation
1 Unclip catches (2)
2 Remove air intake (1)
3 Install in opposite order
