Removing and installing the injection system control module - AR07.08-P-7008MB
ENGINE 275 in MODEL 215, 220
| Removing/installing | |||
| Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000M | |
| 2.1 | Carry out control module adaptations using STAR DIAGNOSIS | Only when replacing the control module ME (N3/10). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnostic system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||

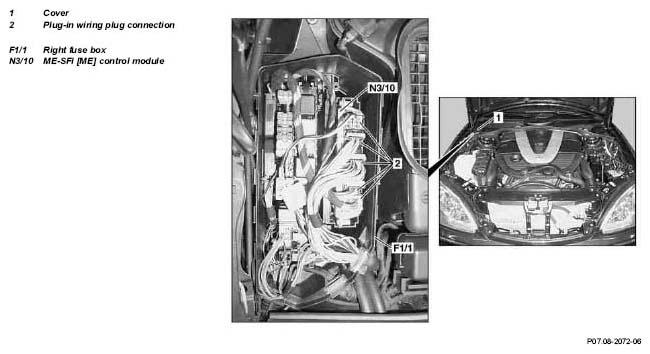

| 3 | Unlock cover (1) of the right fuse box (F1/1) and take it off | ||
| 4 | Disconnect plug connections (2) at ME control module (N3/10) | ||
| 5 | Lift ME control module (N3/10) up and out | ||
| 6 | Install in the reverse order | ||
| 7 | Read out DTC memory |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
