Remove/install chain tensioner - AR05.10-P-7800M

ENGINE 275.950 in MODEL 215.376, 220.176

ENGINE 275.980 in MODEL 215.379, 220.179

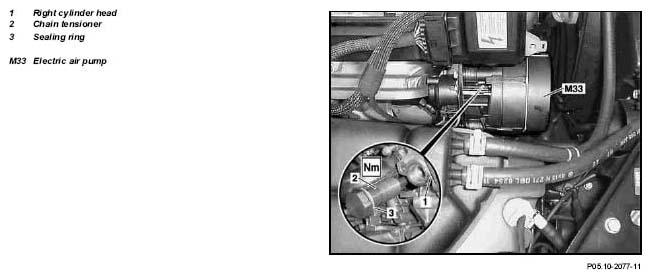

Fig 1: Identifying Chain Tensioner, Sealing Ring, Eletric Airpump And Right Cylinder Head Of Chain Tensioner

	Remove/install
1	Remove electric air pump (M33)	Disconnect electric connector.	AR14.30-P-7251
2	Remove air pump bracket
3	Detach chain tensioner (2) at right cylinder head (1)	Installation: Replace sealing ring (3).
			*BA05.10-P-1003-01H
4	Install in the reverse order

TIMING CHAIN, CHAIN TENSIONER TORQUE SPECIFICATION

Number	Designation		Engine 275, 285
BA05.10-P-1003-01H	Chain tensioner housing in timing case cover	Nm	120
