Check basic position of camshafts - AR05.20-P-6010MC
ENGINE 275 in MODEL 215, 216, 220, 221, 230

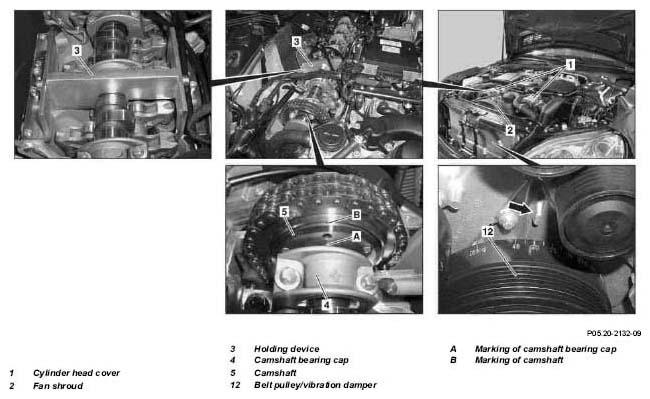

Shown on model 220
  |
Remove/install |
|
|
| 1 |
Remove cylinder head covers (1) |
|
AR01.20-P-5014H |
| 2 |
Remove fan shroud (2). |
Model 215.376, 220.176, 230 |
AR20.40-P-6800AC |
| |
|
Model 215.379, 220.179 |
AR20.40-P-6800IM |
| |
|
Model 216, 221 except 216.379, 221.179 |
AR20.40-P-6800SZ |
| |
|
Model 216.379, 221.179 |
AR20.40-P-6800SXM |
 |
Checking |
|
|
| 3 |
Position engine to a 30° crank angle after ignition TDC of cylinder 1 |
Rotate engine at crankshaft in direction of engine rotation until marking for a 30° crank angle on the belt pulley/vibration damper (12) coincides with marking on the timing case cover (arrow).
The engine must not be turned back, otherwise the timing chain can skip and this can result in engine damage. |
|
| 4 |
Check basic position of camshafts |
The basic position of the camshafts is only correct if both holding devices (3) can be mounted free of tension on left and right cylinder head. The scribe marks (A) of the camshaft bearing caps (4) must align with scribe marks (B) on camshafts (5). |
|
| |
|
Retainer (left camshaft) |
Fig 3 |
| |
|
Retainer (right camshaft) If this is not possible: ↓ |
Figure |
| |
|
Set basic position of camshafts. |
AR05.20-P-6020M |
| 5 |
Install in the reverse order |
|
|
