Remove/install rear engine cross member - AR22.10-P-1170M
ENGINE 275.950 in MODEL 220.176
ENGINE 628.960 in MODELS 220.028 /128
ENGINE 275.980 in MODEL 220.179
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of lifting platform and position four support plates below the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| 1.1 | Remove rear bottom section of soundproofing | Vehicles with diesel engine. | AR94.30-P-5300M |
| 1.2 | Remove rear section of lower engine compartment paneling | Vehicles with gasoline engine. | AR61.20-P-1105M |
| 2 | Support transmission with transmission jack and transmission plate | *WE58.40-Z-1018-11A | |

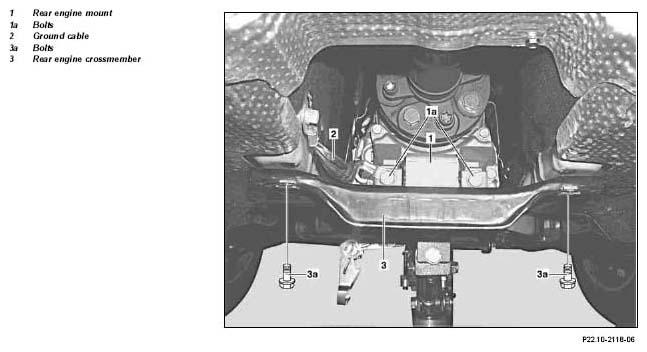

| 3 | Remove bolts (1a) | ||
| *BA22.10-P-1006-01D | |||
| *BA22.10-P-1006-01L | |||
| 4 | Unscrew bolts (3a) and remove engine crossmember (3). | ||
| *BA22.10-P-1003-01D | |||
| *BA22.10-P-1003-01L | |||
| 5 | Install in the reverse order |
| Number | Designation | Engine 628.960 in model 220 | |
|---|---|---|---|
| BA22.10-P-1003-01D | Bolt/nut, rear engine crossmember to body | Nm | 40 |
| BA22.10-P-1006-01D | Bolt or nut, rear engine mount to transmission | Nm | 40 |
| Number | Designation | Engine 112.922/944/972, 113.941/960, 137.970 in model 220 | Engine 275.950/980 in model 220 | ||
|---|---|---|---|---|---|
| BA22.10-P-1003-01L | Bolt, rear engine crossmember to body | Nm | 40 | 40 | |
| BA22.10-P-1006-01L | Bolt or nut, rear engine mount to transmission | M8 | Nm | - | - |
| M10 | Nm | 40 | 40 | ||
WORKSHOP EQUIPMENT
| WE58.40-Z-1018-11A | Transmission platform |
