Remove/install front end supports - AR22.10-P-4320IX
ENGINE 275.950 in MODEL 215.376, 220.176
ENGINE 275.980 in MODEL 215.379, 220.179
  |
Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off the lifting platform. |
Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. |
AS00.00-Z-0010-01A |
| 1 |
Remove engine |
Model 220 with special protection version, code 979, light armoring, code Z04 or top protection, code Z07 |
|
| |
|
Model 215, 220 without special protection version, armoring, or top protection |
AR01.10-P-2400MC |
 |
Checking |
|
|
| 2 |

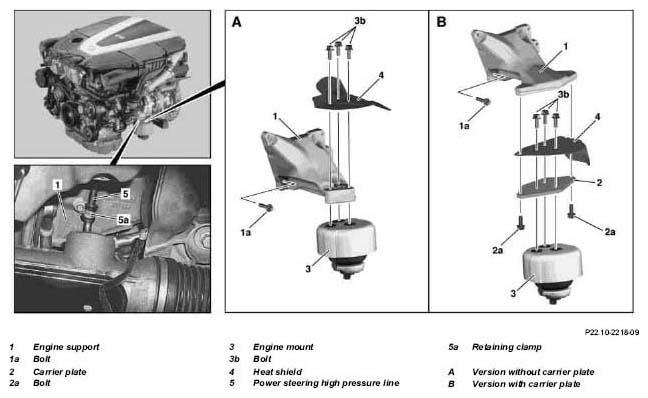

Check version (A, B) of engine support (1) |
Engine supports (1) of version (A) must not be used and must be replaced by engine support (1) of version (B). |
|
| 3 |
Remove retaining clamp (5a) from high pressure line (5) for power steering from left engine support (1) |
 |
*BA46.30-P-1029-01C |
| 4 |
Remove bolts (2a) and engine mount (3) with heat shield (4) and carrier plate (2) from engine support (1) |
For engine supports (1) of version (B) |
|
| |
|
|
*BA22.10-P-1002-02A |
| 5 |
Remove bolts (3b) and engine mount (3) with heat shield (2) and carrier plate (4) or engine support (1) |
Replace engine mounts (3) in pairs as required.
Pay attention to environmental protection regulations during disposal of engine mounts (3). |
|
| |
|
Dispose engine mounts (3) to mixed scrap. |
|
| |
|
|
*BA22.10-P-1004-01L |
| |
|
|
*BA22.10-P-1020-01L |
| 6 |
Remove bolts (1a) and engine support (1) from crankcase |
|
*BA22.10-P-1001-02A |
| 7 |
Install in the reverse order |
|
|
POWER STEERING PUMP
| Number |
Designation |
Model 215.376/379, 220.176/179 with code 487 |
| BA46.30-P-1029-01C |
Bolt, high pressure line retaining clamp to engine support |
Nm |
8 |
ENGINE MOUNTS, ENGINE SUPPORTS
| Number |
Designation |
Engine 275.950/ 980 in model 215 |
Engine 275.950/980 in model 220 |
| BA22.10-P-1004-01L |
Bolt, front engine mount to engine support |
Nm |
25 |
55 |
| BA22.10-P-1020-01L |
Bolt, front engine mount to carrier plate |
Nm |
50 |
50 |
ENGINE SUPPORT (ENGINE SIDE)
| Number |
Designation |
Engine 275 |
| BA22.10-P-1001-02A |
Bolt, engine support to crankcase |
Stage 1 |
Nm |
20 |
| Stage 2 |
∠ ° |
90 |
| BA22.10-P-1002-02A |
Bolt, engine mount carrier plate at front on engine support |
Stage 1 |
Nm |
20 |
| Stage 2 |
∠ ° |
90 |
