Remove, install flywheel / drive plate - AR03.30-P-8001MC
ENGINE 275 in MODEL 215, 216, 220, 221
  |
Remove/install |
|
|
| 1 |
Remove automatic transmission |
Model 215, 220 |
AR27.10-P-0500I |
| |
|
Model 216, 221 |
AR27.10-P-0500SZ |
| 2 |
Install retaining lock |
Model 215, 220 |
AR03.30-P-5000B |
| |
|
Model 216, 221 |
AR03.30-P-5000SZ |
| 3 |
Remove bolts (2) from drive plate (1) |
 Installation:
replace bolts (2), as if they are used again, the connection may not be tight or the bolts may shear off. |
|
| |
|
 |
*BA03.30-P-1003-01I |
| 4 |
Remove washer (3) |
|
|
| 5 |

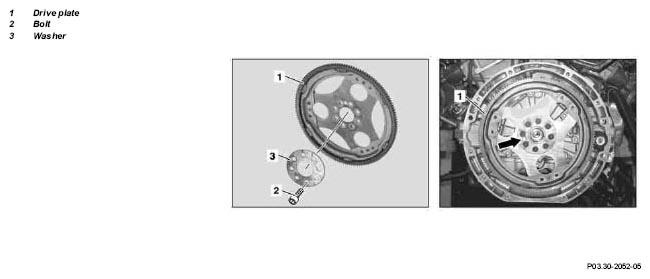

Remove drive plate (1) with starter ring gear |
Installation: The cylindrical pin (arrow) determines the installation position. |
|
| 6 |
Install in the reverse order |
|
|
| 7 |
Carry out initialization |
If a new drive plate (1) is installed, perform initialization in the ME control unit with STAR Diagnosis in the menu point "Control unit adaptation". |
|
| |
|
 |
*WH58.30-Z-1048-13A |
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number |
Designation |
Engine 275, 285 |
| BA03.30-P-1003-01I |
Bolt, flywheel or two-mass flywheel / driven plate to crankshaft |
Stage 1 |
Nm |
45 |
| Stage 2 |
∠ ° |
90 |
COMMERCIALLY AVAILABLE TOOLS
| Number |
Designation |
| WH58.30-Z-1048-13A |
STAR DIAGNOSIS diagnosis system, Compact Passenger Car |
6511 1801 00 |
