Bolt diagram for timing case cover - AR01.40-P-8000-01RVK

IMPORTANT Sealant is applied to marked bolts (arrows).

Assignment of bolts for timing case cover

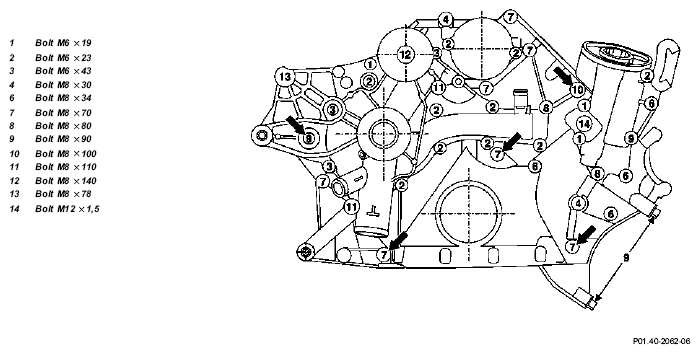

Fig 1: Identifying Timing Case Cover Bolts
G04714876
