Remove, install engine oil cooler - AR18.30-P-1000IM

ENGINE 275.980

in MODEL 215.379 up to 29.2.04,

220.179

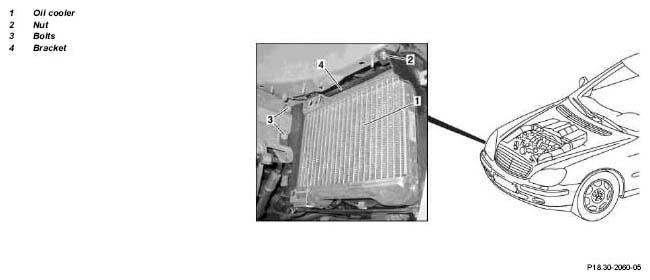

Fig 1: Identifying Oil Cooler Bracket, Nut And Bolts

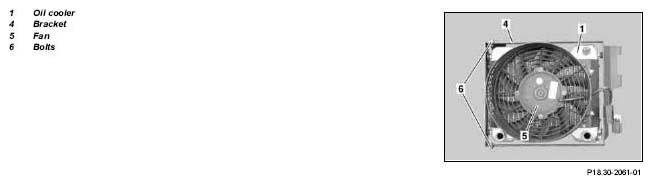

Fig 2: Identifying Oil Cooler Bracket, Fan And Bolts

MODIFICATION NOTES

17.5.06

Engine oil, filling capacity with and without oil filter

Engine 275.980

*BF18.00-P-1001-01K

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between pillars of lifting platform and position four support plates at lifting platform mounting points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground cable	Turn key in electronic ignition switch EIS into position "0". Key cannot be withdrawn. Vehicle with Keyless Go code 889: Switch off engine, remove Keyless-Go cards from the vehicle and store outside of transmitter range Installation: After connecting, read out diagnostic trouble code memory, set time at instrument cluster, encode radio, normalize power windows and activate steering angle sensor. Vehicles with stationary heater: adjust time display on stationary heater.	AR54.10-P-0003I
2	Remove engine compartment paneling below radiator on outer right		AR61.20-P-1105M
3	Remove right wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
4	Remove right inner fender		AR88.10-P-1300M
5	Drain and collect engine oil		*BA01.45-P-1003-01B
			*BF18.00-P-1001-01K
6	Unclip relay for engine cooler fan from bracket and suspend to one side
7	Unscrew oil lines to oil cooler (1)		*BA18.30-P-1003-01B
8	Unscrew bolts (3) and nuts (2) from bracket (4)		*BA18.30-P-1008-01B
			*BA18.30-P-1009-01B
9	Disconnect electrical connection from fan (5) of oil cooler (1)	Disconnect tie strap of electrical connection.
10	Remove oil cooler (1) with bracket (4)
11	Unscrew bolts (6) and open bracket (4)		*BA18.30-P-1006-01B
12	Pull filter (1) out of bracket (4)	Installation: Check rubber rings for damage. Installation: Moisten rubber rings slightly with antifriction agent.
		Antifriction agent	*BR00.45-Z-1010-06A
13	Unscrew fan (5) from oil cooler (1)		*BA18.30-P-1005-01B
14	Install in the reverse order
15	Read out diagnostic trouble code memory using STAR DIAGNOSIS and erase if necessary
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
16	Check for leaks with engine running
17	Check engine oil level and adjust correctly		AR54.30-P-1000-02OPM

OIL COOLING SYSTEM

Number	Designation		Engine 275.980/ 981/982
BA18.30-P-1003-01B	Oil line to oil cooler	Nm	30
BA18.30-P-1005-01B	Bolt connecting fan to engine oil cooler	Nm	4
BA18.30-P-1006-01B	Bolt connecting bracket to retaining frame	Nm	10
BA18.30-P-1008-01B	Bolt, retaining bracket of engine cooler to front end assembly	Nm	27
BA18.30-P-1009-01B	Nut, retaining bracket of engine cooler to front end assembly	Nm	10

OIL PAN

Number	Designation			Engines 275, 285
BA01.45-P-1003-01B	Oil drain screw to oil pan	M14	Nm	30

ENGINE LUBRICATION SYSTEM

Number	Designation			Engine 275.980
BF18.00-P-1001-01K	Engine oil	Filling capacity with oil filter	Liters	9.0
		Filling capacity without oil filter	Liters	-
		Specifications for Operating Fluids	Sheet	-
			Sheet	BB00.40-P-0229-03A
			Sheet	BB00.40-P-0229-05A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Antifriction agent	A 000 989 03 67
