Remove, install engine oil cooler - AR18.30-P-1000H

ENGINE 275.950 in MODEL 215.376, 220.176

ENGINE 285 in MODEL 240

Shown on model 240

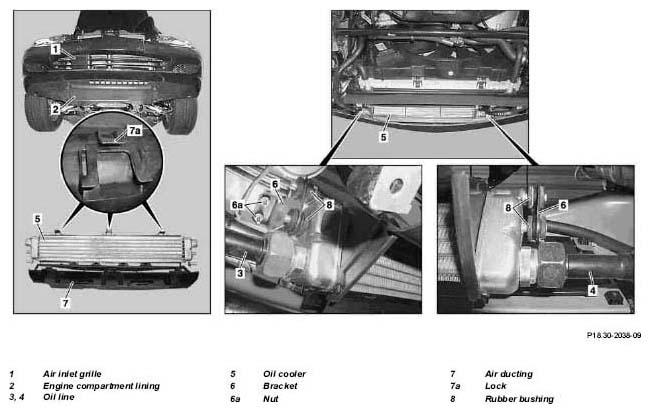

Fig 1: Identifying Engine Oil Cooler Remove/Install Components - Shown On Model 240

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove air inlet grate (1)	Model 240
2	Remove lower engine compartment paneling (2)	Install lower engine compartment paneling (2) only after inspection of tightness.
		Model 215, 220	AR61.20-P-1105M
		Model 240	AR61.20-P-1105H
3	Detach oil lines (3, 4) from oil cooler (5)	Collect engine oil in reservoir.
			*BA18.30-P-1003-01B
4.1	Unscrew nuts (6a) and take out right bracket (6)	Model 215, 220
4.2	Unscrew nuts (6a) and take out left bracket (6)	Model 240
5.1	Pull oil cooler (5) with air ducting (7) out of left bracket (6)	Model 215, 220
5.2	Pull oil cooler (5) with air ducting (7) out of right bracket (6)	Model 240
6	Unfold air ducting (7) and take out oil cooler (5).	If oil cooler is exchanged (5) To do so lift arresting mechanism (7a).
	Checking
7	Check rubber mount (8) in the left and right bracket (6)	Check for wear and correct seating, if required:↓ Replace rubber mount (8.
		Lubricant paste	*BR00.45-Z-1002-06A
8	Install in the reverse order
9	Check engine oil level and adjust correctly	See: Perform adjustments on control system
		Model 215, 220	AR54.30-P-1000-02OPM
		Model 240	AR54.30-P-1000-02OPH
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Check for leaks with engine running

OIL COOLING SYSTEM
